Size —

Size chart

Purchase Notes:

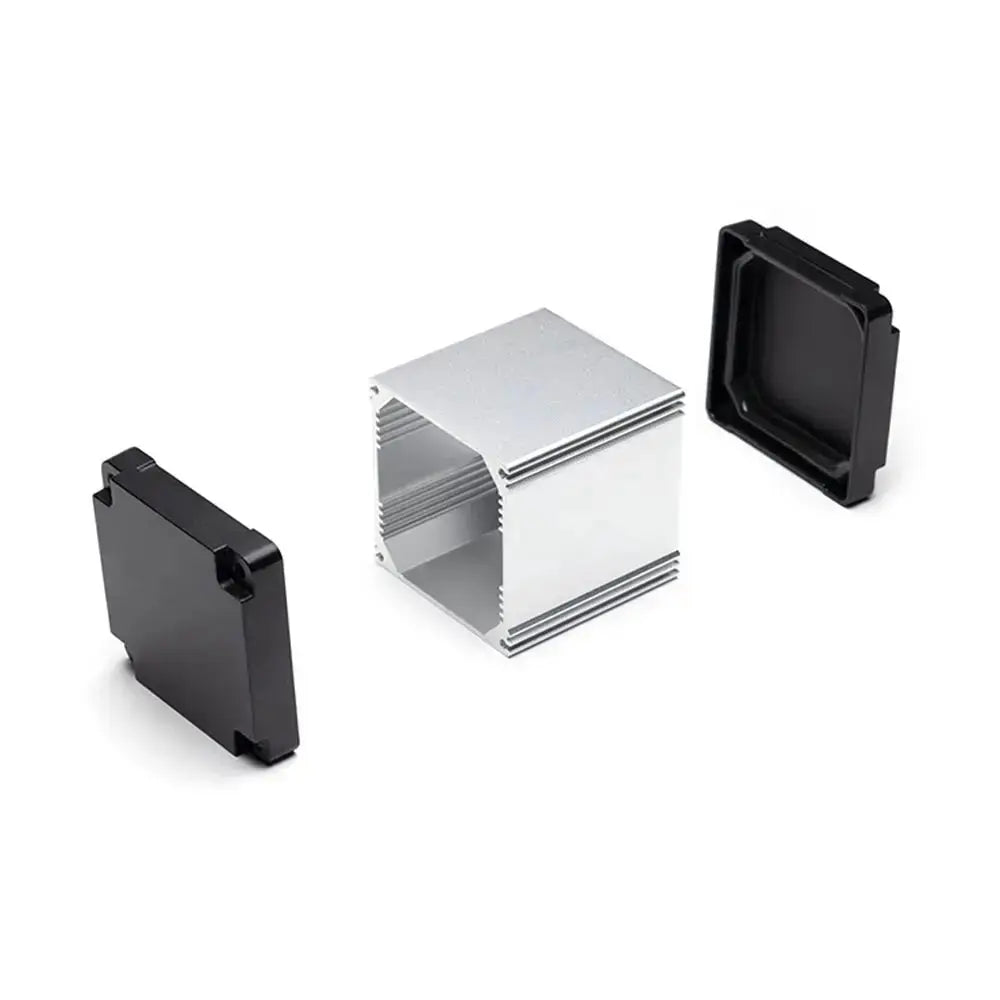

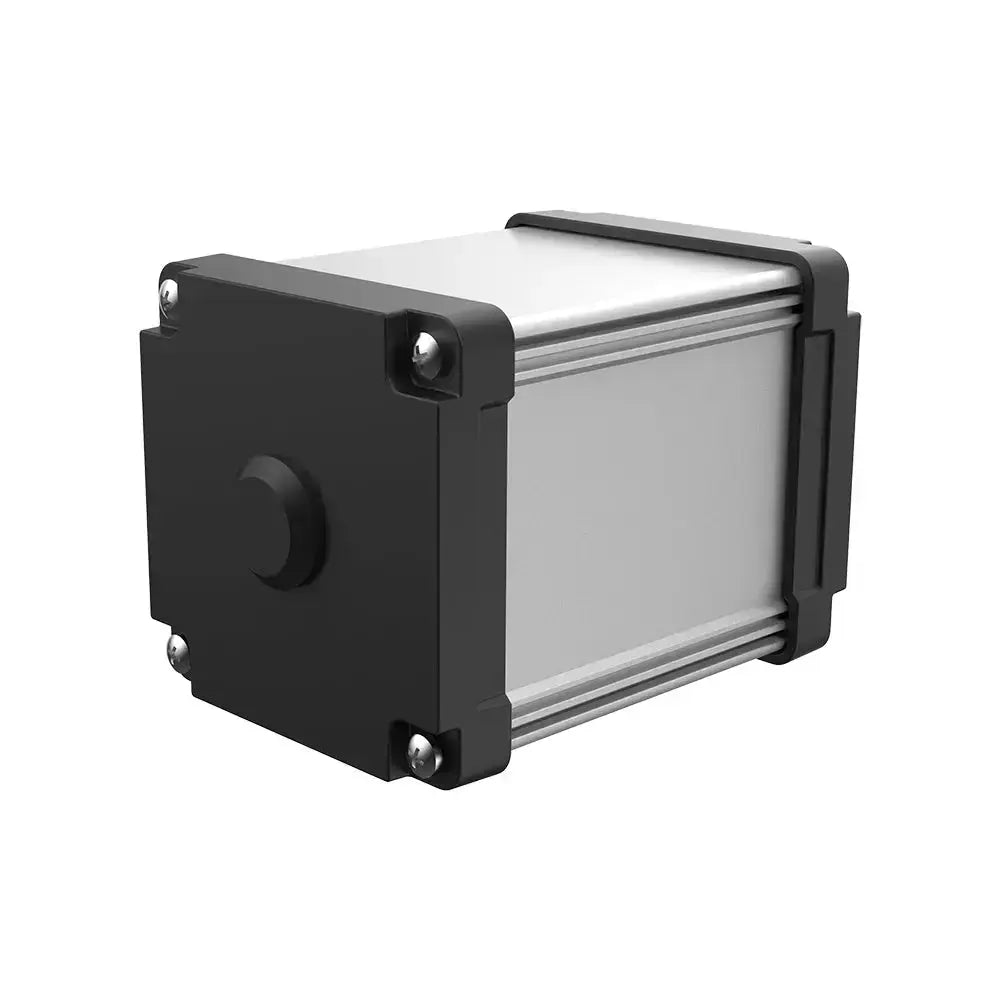

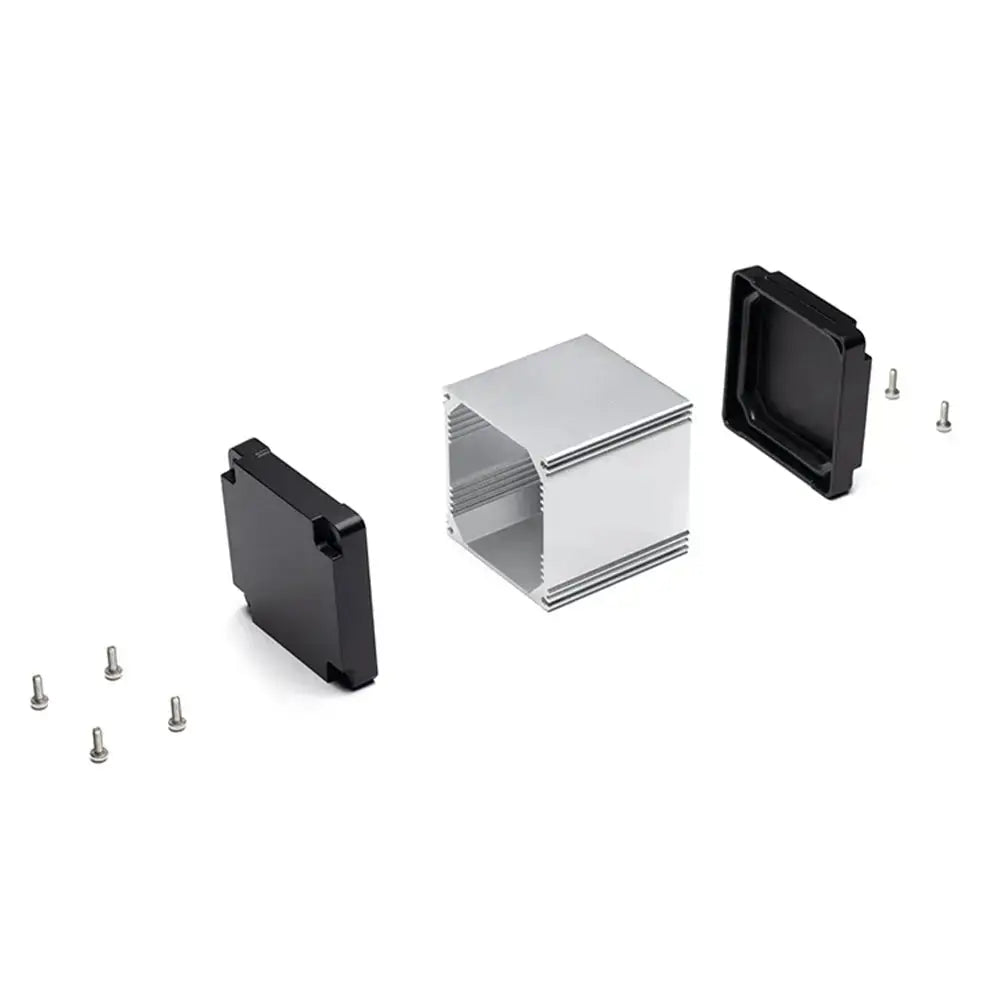

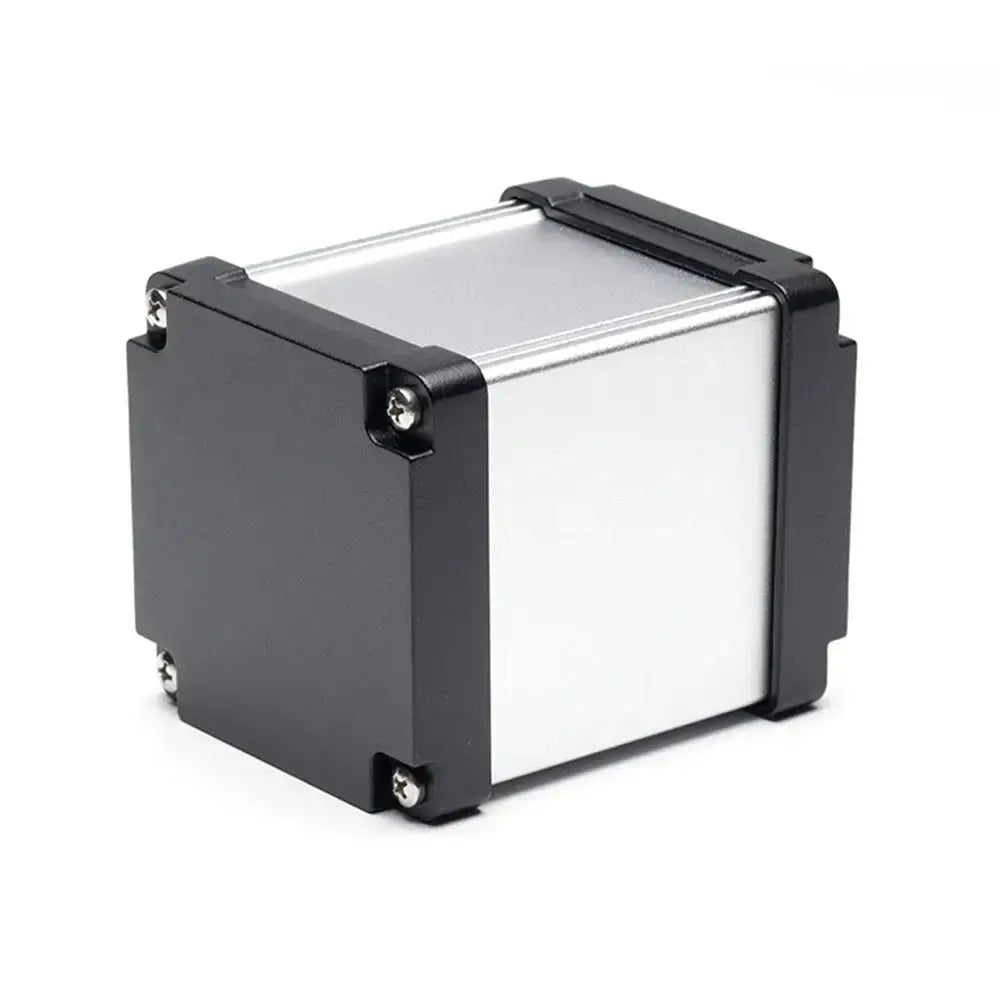

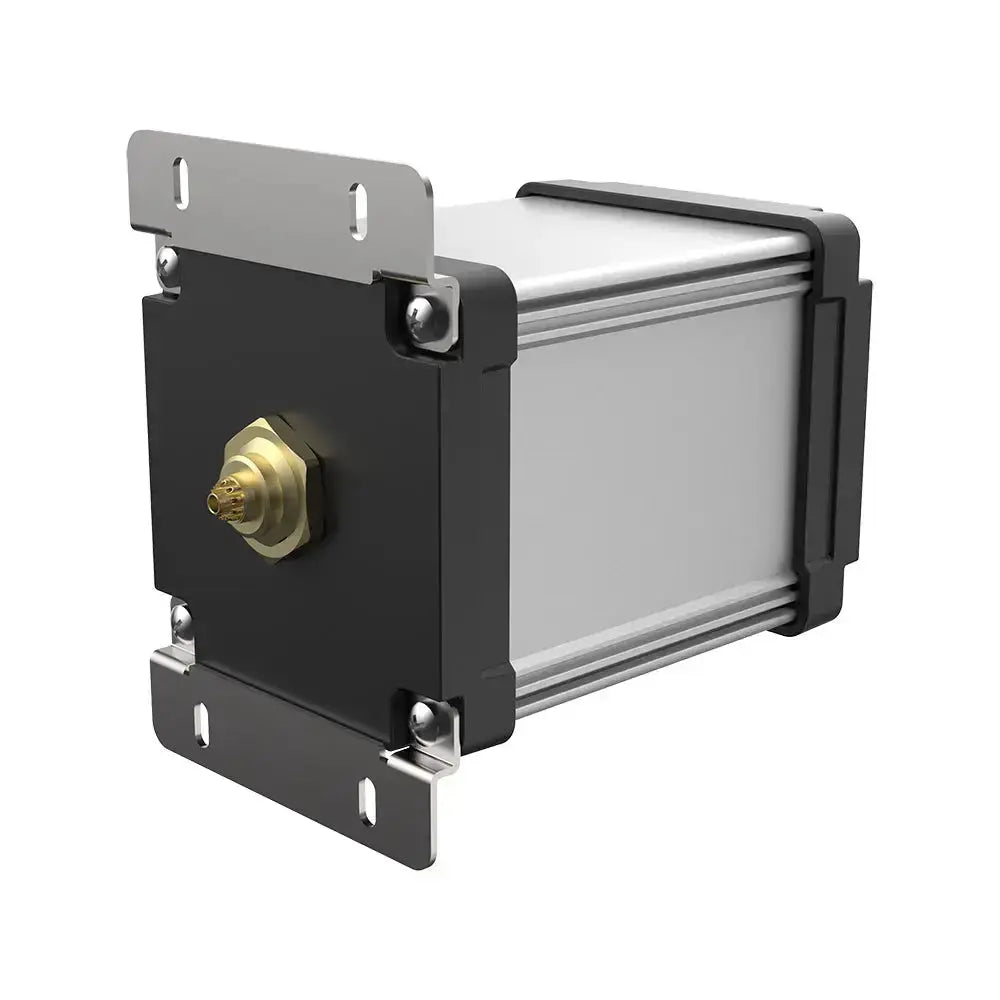

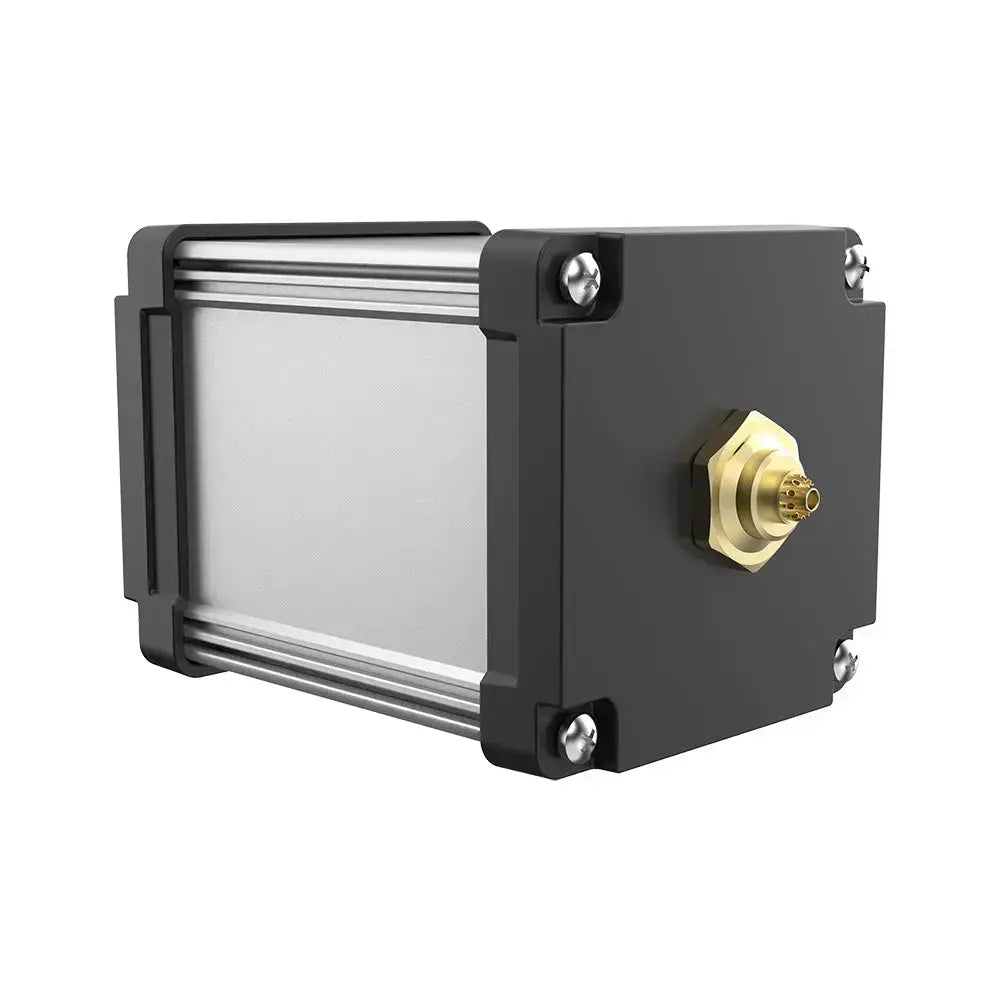

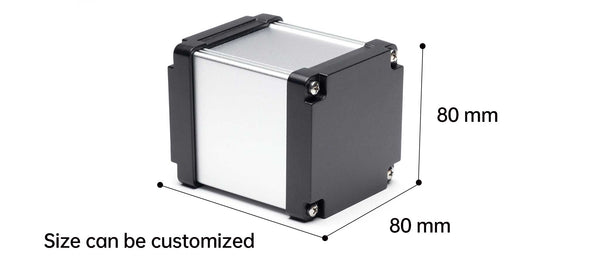

Name: 80*80 Waterproof Enclosure
Brand: Yongu Case
SKU: M02
Price: 16 USD
Availability: InStock

In stock will be shipped on 24 hours. All stock in stock do not have holes and do not contain components;

if you need customized services such as hole opening, logo printing, etc., please send an inquiry to contact us.

High (can be customized）	width (can be customized）	Length /Depth (can be customized）	Surface Treatment
2U	260W/370W/450W	226L/276L/326L	Brushed Silver
115H	260W/370W/450W	226L/276L/326L	Brushed Silver
3U	260W/370W/450W	226L/276L/326L	Brushed Silver
4U	260W/370W/450W	226L/276L/326L	Brushed Silver

Height (can be customized）	width (can be customized）	Length /Depth (can be customized）	Surface Treatment
2U	260W/370W/450W	226L/276L/326L	Brushed Silver
115H	260W/370W/450W	226L/276L/326L	Brushed Silver
3U	260W/370W/450W	226L/276L/326L	Brushed Silver
4U	260W/370W/450W	226L/276L/326L	Brushed Silver

c series 19inch server case size summary

Height	Width (can be customized）	Length /Depth (can be customized）	Surface Treatment
1U	19"/ 19 Inch / 482.6W	250L/300L	Brushed Black
1.5U	19"/ 19 Inch / 482.6W	250L/300L	Brushed Black
2U	19"/ 19 Inch / 482.6W	250L/300L	Brushed Black
3U	19"/ 19 Inch / 482.6W	250L/300L	Brushed Black
4U	19"/ 19 Inch / 482.6W	250L/300L	Brushed Black
1U	19"/ 19 Inch / 482.6W	270L/320L	Brushed Black & Handle
2U	19"/ 19 Inch / 482.6W	274L/324L/374L	Brushed Black & Handle
3U	19"/ 19 Inch / 482.6W	274L/324L/374L	Brushed Black & Handle
4U	19"/ 19 Inch / 482.6W	274L/324L/374L	Brushed Black & Handle

Height	Width (can be customized）	Length /Depth (can be customized）	Surface Treatment
2U	269W/375W/482W	300L/350L/400L	Brushed Silver & Sandblasted Light Blue Handle
3U	269W/375W/482W	300L/350L/400L	Brushed Silver
4U	269W/375W/482W	300L/350L/400L	Brushed Silver

Height (can be customized）	Width	Length /Depth (can be customized）	Surface Treatment
2U	268W/358W	220L/250L/280L/300L/330L/380L	Sandblasted Silver
110H	268W/358W	220L/250L/280L/300L/330L/380L	Sandblasted Silver
3U	268W/358W	220L/250L/280L/300L/330L/380L	Sandblasted Silver
4U	268W/358W	220L/250L/280L/300L/330L/380L	Sandblasted Silver

Height	Width (can be customized）	Length /Depth (can be customized）	Surface Treatment
35H	235W/228.2W	115L/150L	Blasted Black/ Blasted Grey
45H	292W	205L	Blasted Black/ Blasted Grey
55H	246W	215L	Blasted Black/ Blasted Grey
65H	266W	235L	Blasted Black/ Blasted Grey
75H	256W	225L	Blasted Black/ Blasted Grey
52H	215W	260L	Blasted Black/ Blasted Grey
56H	269W	234L	Blasted Black/ Blasted Grey
44.5H	437W	324L	Blasted Black/ Blasted Grey
2U	437W/229W/337W/445W	250L/270L/300L/324L	Blasted Black/ Blasted Grey
3U	437W/229W/337W/445W	250L/270L/300L/324L	Blasted Black/ Blasted Grey

P series aluminum enclosure -battery box

*WidthHeight (can be customized）**	Length (can be customized）	Surface Treatment
133.4*55	109	Blue/Black/Champagne Gold
208.4*71.5	189	Blue/Black/Champagne Gold
248.4*81.5	209	Blue/Black/Champagne Gold

*LengthWidth**	Height (can be customized)	Surface Treatment
100*75	30/35/40/45	Sandblasted Silver/Black
110*65	30/35/40/45	Sandblasted Silver/Black
120*75	30/35/40/45/50	Sandblasted Silver/Black
130*100	30/35/40/45/50	Sandblasted Silver/Black
140*85	30/35/40/45/50/55	Sandblasted Silver/Black
150*115	30/35/40/45/50/55	Sandblasted Silver/Black
160*120	30/40/50/60/70	Sandblasted Silver/Black
170*125	30/40/50/60/70	Sandblasted Silver/Black
165*135	30/40/50/60/70/80	Sandblasted Silver/Black
200*150	30/40/50/60/70/80	Sandblasted Silver/Black
240*160	80	Sandblasted Silver/Black
260*180	80	Sandblasted Silver/black

*WidthHeight**	Length/ Depth （can be customized）	Surface Treatment	Pcb Slot Width
60*60	70L/80L/100L/120L/150L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	52
80*80	80L/100L/120L/140L/160L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	72
100*50	100L/120L/150L/180L/200L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	92
150*75	120L/150L/180L/200L/220L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	142
200*75	150L/180L/200L/220L/250L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	192
75*40	80L/100L/120L/150L/180L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	63
90*45	100L/120L/150L/180L/200L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	78
110*55	100L/120L/150L/180L/200L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	98
125*60	120L/150L/180L/200L/250L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	113
130*65	150L/180L/200L/220L/250L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	118
180*70	150L/200L/220L/250L/300L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	168
240*160	250L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	230
260*180	250L	Sandblasted Black/Black & Wall Mount/Silver/Silver & Wall Mount	250

EMI shielding aluminum enclosure -K series

*WidthHeight**	Length （ can be customized ）	Surface Treatment	Pcb Slot Width
70*35	70L/80L/90L/100L/110L	Sandblasted Black/Sandblasted Silver	59.3
82*24	80L/90L/100L/110L/120L	Sandblasted Black/Sandblasted Silver	71.9
100*26	80L/90L/100L/110L/120L	Sandblasted Black/Sandblasted Silver	89.3
110*30	100L/120L/150L/160L/180L	Sandblasted Black/Sandblasted Silver	98.5
130*35	100L/120L/150L/160L/180L	Sandblasted Black/Sandblasted Silver	118.1
88*38	110L/120L/130L/140L/150L	Brushed Black/Brushed Silver	84.2
106*40	110L/120L/130L/150L/170L	Sandblasted Black/Sandblasted Silver	101±0.2
125*51	120L/140L/160L/180L/200L	Brushed Black/Brushed Silver	121
152*44	140L/160L/180L/200L/220L	Brushed Black/Brushed Silver	148
168*54	150L/160L/180L/200L/220L	Brushed Black/Brushed Silver	163
66*30	70L/100L/130L/160L/190L	Sandblasted Black/Sandblasted Silver	62.4
75*35	70L/100L/130L/160L/190L	Sandblasted Black/Sandblasted Silver	71.4
90*35	70L/100L/130L/160L/190L	Sandblasted Black/Sandblasted Silver	86.4
105*45	70L/100L/130L/160L/190L	Sandblasted Black/Sandblasted Silver	101
110*50	70L/100L/130L/160L/190L	Sandblasted Black/Sandblasted Silver	106
120*40	70L/100L/130L/160L/190L	Sandblasted Black/Sandblasted Silver	116
130*55	70L/100L/130L/160L/190L	Sandblasted Black/Sandblasted Silver	126
140*50	70L/100L/130L/160L/190L	Sandblasted Black/Sandblasted Silver	136
150*55	70L/100L/130L/160L/190L	Sandblasted Black/Sandblasted Silver	145
160*55	70L/100L/130L/160L/190L	Sandblasted Black/Sandblasted Silver	155
180*45	70L/130L/190L	Sandblasted Black/Sandblasted Silver	175

*WidthHigh**	Length （ can be customized ）	Surface Treatment	Pcb Slot Width
25*25	80L	Sandblasted Blue/Sandblasted Silver	22.7
71*25.5	100ML	Sandblasted Black	67
76*35	90L/110L/100L	Sandblasted Golden/GoldenBending/Black/ BlackBending	71
76*46	90L/100L/130L/110L	Sandblasted Black/ BlackBendinging/ Golden/ GoldenBendinging/ Silver-Bendinging	71.2
88*38	70L/120L/100L	Brushed Black / Brushed BlackBending / Black /Silver / Brushed Silver	84.2
90*36	110L	Brushed Black/Brushed Silver	87.2
95*55	100L/120L/125L/130L/150L/180L	Sandblasted Black/ BlackBendinging/ Grey/ GreyBendinging	91
96*45.5	140L	Sandblasted Black	91.2
97*40	90L/120L/150L	Sandblasted Black/BlackBendinging/ Silver / Silver-Bendinging	93
100*25.5	120L	Sandblasted Black/ Silver	95
106*40	110L	Brushed Black	101
106*54	150L	Sandblasted GreyBendinging	100
106*55	100L/150L/155L	Sandblasted Black/ Silver	100.4
107*47	100L/120L/145L	Sandblasted Silver/ BlackBendinging/ GrayBendinging	103
114*33	120L/150L	Sandblasted Silver / SilverBendinging /GrayBendinging	109.5
122*45	110L/160L	Sandblasted SilverBending / BlackBending	110
125*51	110L/150L/160L/180L	Brushed Black	121
127*75	160L/165L/170L/200L	Sandblasted Black/ Grey	121
138*45	160L	Sandblasted Grey	108.8
145*54	80L/95L/100L/150L/200L/250L/300L	Sandblasted Black / Silver / SilverBending / Brushed Black	140.2
145*68	150L/200L/300L	Sandblasted Silver/Brushed Black/Brushed Silver	140
145*82	90L/160L/200L/260L	Sandblasted Black/ Silver/Brushed Black	140
147*41	100L/150L/155L	Sandblasted Black/Silver	115.2
147*55	155L	Sandblasted Silver	115.2
152*44	130L/150L/200L	Brushed Black	148
160*94	250L	Sandblasted Black/ Silver	Slotless Design
168*54	100L/120L/150L/260L	Brushed Black/Brushed Silver	163
202*52	130L	Brushed Golden	197
204*48	90L/160L	Sandblasted Black	172.4
234*80.6	250L	Sandblasted Black/ Silver/ Grey	190
250*73.5	250L	Sandblasted Black/ Silver/ Grey	225

*WidthHigh**	Length （ can be customized ）	Surface Treatment	Pcb Slot Width
46.2*29.6	90L	Sandblasted Blue Bending / Black Bending	42
57.3*13	63L	Sandblasted Black/ Grey	50
58*24	80L	Sandblasted Grey/Champagne Gold	50.5
61*22.4	80L	Sandblasted Grey/Champagne Gold	58
63*37	95L/130L	Sandblasted Grey/Grey Bendinging	60.3
64*23.5	75L/110L	Sandblasted Silver /Silver Bending/Brushed Black	60.2
64*25.5	80L	Sandblasted Grey/ Grey Bendinging	60.6
66*27	100L	Sandblasted Silver /Silver Bending/Brushed Black	60.2
66.2*27.5	100L	Sandblasted Black	60.2
67*30	90L	Sandblasted Black	48.6
72.1*25.9	110L	Sandblasted Black/Brushed Black	61
70*21	88L	Sandblasted Black/ Grey/ Red	(Less Than 58)
74*29	80L/120L/100L	Sandblasted Black / Black bending / Brushed Black / Brushed Black Bending	70.4
80*23.8	90L	Sandblasted Black/Sandblasted Grey	60.6
80*35	100L	Sandblasted Black	74.3-76.5
80*45	115L	Sandblasted Black/Black bendinging/ Silver / Silver- bendinging	70
82.8*28.8	90L/100L/110L/120L	Sandblasted Black/Silver/Brushed Black/ Blue	77.2
84*28	100L	Sandblasted Black	80
97*40.5	130L	Sandblasted Black/ Grey	70
104*28	95L/120L	Sandblasted Black/Grey	76.4
116*53	130L	Sandblasted Black	86
155*32	111L/155L	Sandblasted Black/ Golden	135.5
120*46	170L	Sandblasted Black/Light Blue/ Golden	/

*WidthHeight**	Length （ can be customized ）	Surface Treatment	Instruction Manual (Front Panel can customized)
64*25.5	100L	Brushed Black/Sandblasted Black
66.2*27.5	100L	Brushed Black/Sandblasted Black
80*1U	100L	Brushed Black/Sandblasted Black	Front Panel 8mm
106*55	155L	Brushed Black/Sandblasted Black
108*26	100L	Brushed Black/Sandblasted Black	Front Panel 6mm
114*33	100L	Brushed Black/Sandblasted Black	Front Panel 8mm
125*51	150L	Brushed Black/Sandblasted Black	Front Panel 8mm
145*54	200L	Brushed Black/Sandblasted Black	Front Panel 9mm
145*68	200L	Brushed Black/Sandblasted Black	Front Panel 8mm
145*82	220L	Brushed Black/Sandblasted Black
150*1U	200L	Brushed Black/Sandblasted Black
152*44	130L	Brushed Black/Sandblasted Black	Front Panel 5mm
155*32	150L	Brushed Black/Sandblasted Black	Front Panel 8mm
168*54	200L	Brushed Black/Sandblasted Black	Toothed/Stripe
180*1U	250L	Brushed Black/Sandblasted Black	Toothed Front Panel 8mm
180*60	220L	Brushed Black/Sandblasted Black
133*48.8	159L	Brushed Black/Sandblasted Black	Toothed/Stripe
180*1.5U	250L	Brushed Black/Sandblasted Black
180*2U	250L	Brushed Black/Sandblasted Black	Toothed/Stripe
190*60	250L	Brushed Black/Sandblasted Black	Toothed
190*1.5U	250L	Brushed Black/Sandblasted Black	Stripe
226*1.5U	280L	Brushed Black/Sandblasted Black
230*75	246L	Brushed Black/Sandblasted Black	Toothed/Stripe
250*1U	180L	Brushed Black/Sandblasted Black	Toothed/Stripe
438*1U	200L/250L	Brushed Black/Sandblasted Black	Toothed/Stripe
438*2U	200L/230L/250L/300L	Brushed Black/Sandblasted Black
120*40	100L/120L/150L	Brushed Black/Sandblasted Black
143*40.4	120L/150L/80L	Brushed Black/Sandblasted Black
185*55	200L/220L/250L	Brushed Black/Sandblasted Black

80mm x 80mm

Off Shelf Product Shipping 24 Hours ,Custom Sample Shipping 8-10 Days /NO MOQ Limited

Custom Size : Length can be changed flexible，Width and Height is fixed with profile.

Custom Cutouts : Hole Milling,such as hole for Ethernet/Lan,relay or other display,power jack,Led,DMX etc

Custom Color : Black/Silver/Grey/Blue/Red/Gold/Yellow/Green etc via Anodizing/Powder painting

Custom logo : Laser printing/Silk screen printing/Engraving

Custom other components:screw,reverting bolts,blind bolts,stud,liner etc

Custom other function : conductive/non conductive/Surtec 650/Alodine surface treatment

In stock, ready to ship
Inventory on the way

We supply nationwideEurope supports FedEx—5 ays delivery
Australia supports TNT—8 days delivery
Canada supports DHL-8 days delivery
US supports FedEx -5 days delivery
Korea supports Fedex-5 days Delievry

If none of the above does not have your country, please send an inquiry to get in touch!

IP68 80*80 Waterproof Enclosure with die-casting cover .

IP68 aluminum enclosure.
Tough and robust for heavy-duty use.
Dispensing ring is good for maintaining both waterproof and dustproof functionality.
Shock resistant diecast aluminum enclosure.
Conductivity can be achieved by utilization of the contact between the unfinished inner surfaces.
Ideal for underwater instrument ,outdoor equipment, wet environment

Description	QTY(PCS)
Anti-loosening washer	8
Dispensing seal ring	2
Feet	2
Die-Case Cover	2
Aluminum Shell	1

Li-Battery Box - Battery Box - Good Protection

This box have a good protection for Li-battery project.

>

PRODUCT DESIGN CASE

DISTINCTIVE INDUSTRIAL DESIGN

Yongu custom designed electronic enclosure saves time and money, we will send out your design drawings within 12 hours.The yongu industrial design department has been established for 17 years, and 10+ designers have rich design experience at the same time. We provide product appearance design, structural design, quick proofing services.

We deeply integrate industrial design into the PLM workflow by customizing the Product Lifecycle Management (PLM) product management system. Below are the services we provide.

Design analysis: design demand analysis, competitive brand analysis, user research analysis, industry trend analysis, design trend analysis, product CMF analysis, product human-machine analysis and other services
Appearance design: design report file (PPT), appearance three-dimensional file (STP) rendering (PNG), description of appearance rendering (JPG), silk screen file (CDR)

Structural Design: Structural 3D File (STP), Patent File Drawing (JPG), Engineering Drawing (DWG)

Engineering: Provide product life cycle management, customized project solutions, functional testing and other services.

check more

COMPLETE CUSTOM-TO-DELIVERY PROCESS

Real customers, real reviews

★★★★★
Thank you for Yongucase and i am very happy to work with you.As my company ,it is growing so fast now ,we have more needs for aluminum enclosure as a sheet metal forming or CNC maching.I will keep you updated on this project ,i really apperciate for your quick response and fantastic cooperation always.

Dr. Malitha
Sri Lanka Customers

★★★★★
Working with Yongucase several years, it is strong product! You will make many boxes for us.The quality of the aluminum is excellent.
I will keep you posted on any future developments.

David WALDEN
US Customers

★★★★★
Working with Yonggu gives us the feeling we are working with an internal part of our company. Ja the quick replies and easy communication is key to us. They understand our needs and are able to make a product enclosure from just a simple sketch. They help thinking about best solutions and make sure quality matters. We will keep working together on long term!

Martin Ciesluk
Netherland Customer

80*80 Waterproof Enclosure
